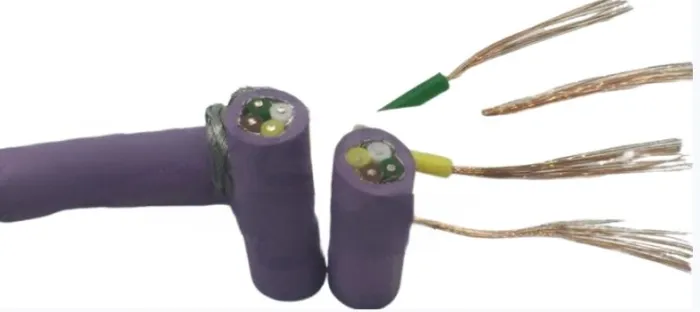

Cable Construction 4X1X0.25m㎡ (stranded)

Inner conductor diameter Bare copper (AWG24/19)

Core insulation PE

Core color White, brown, green, yellow

Stranding elements Star quad

Wrap Polyester film on stranded bundle

Shield 1 None

Full shield Tinned copper braid

Sheath material PUR

Cable outer diameter approx. 6.5mm ± 0.3

Sheath color Purple, similar to RAL4001

Electrical Characteristics

Characteristic impedance 120ohm±10%

Mutual capacitance 50nf/km nominal

Test voltage 1.5KV

Technical Data

Weight approx. 45kg/km

Bending radius, many times 95mm

Operating temperature range -30℃

Operating temperature range +70℃

Applications

CAN bus cables for guided movement in cable drag chains. 2 pairs of wire pairs star four-wire group, i.e. 4-wire group in the diagonal position of the two core wires constitute a two-wire loop, and meet the requirements of the CAN standard.

CAN cables, highly flexible drag chain applications
